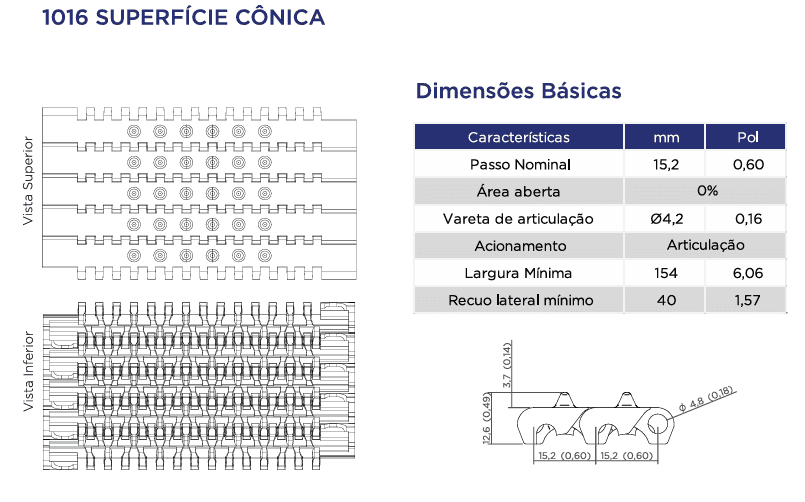

The 1016 Cone Top Belt has a nominal pitch of 15.2 mm and is ideal for conveying adherent products. Designed to reduce the contact area between the conveyed product and the belt, ensuring greater hygiene, less residue adhesion, and improved conveyance flow.
Before starting the project, it is prudent to perform an additional validation with the commercial team to ensure the technical and commercial viability of the application.
Series 1016 Cone Top – ACETAL (POM)
93 mm
102 mm
112 mm
119 mm
128 mm
137 mm
146 mm
154 mm
163 mm
171 mm
179 mm
189 mm
198 mm
207 mm
215 mm
223 mm
232 mm
241 mm
249 mm
258 mm
267 mm
275 mm
284 mm
291 mm
299 mm
308 mm
316 mm
324 mm
333 mm
342 mm
350 mm
359 mm
367 mm
376 mm
384 mm
393 mm
401 mm
410 mm
419 mm
427 mm
436 mm
444 mm
453 mm
462 mm
470 mm
479 mm
487 mm
496 mm
504 mm
512 mm
521 mm
529 mm
538 mm
547 mm
555 mm
563 mm
572 mm
581 mm
589 mm
597 mm
606 mm
615 mm
623 mm
632 mm
640 mm
649 mm
658 mm
668 mm
675 mm
684 mm
692 mm
701 mm
709 mm
718 mm
727 mm
735 mm
744 mm
753 mm
762 mm
771 mm
780 mm
788 mm
797 mm
805 mm
*For widths greater than those indicated in the table, consult our customer support.
Increment +/- 8,5mm Part Size 257mm Width Variation Tolerance +/- 2 mm
Technical Document: Ibraflex Intralogistic Systems Creation Date: 10/09/2025 – October 9th, 2025
