Modular Conveyor Belt Series 1017 Flat Top

Ibraflex Modular Conveyor Belt Series 1017 Closed: High Resistance for Industrial Transport.

The Ibraflex Modular Conveyor Belt Series 1017 Flat Top is engineered to meet the demands of high resistance product transport. With a nominal pitch of 17 mm and a completely closed surface (0% open area), it is ideal for applications requiring stability and high load capacity.

Application Examples

Transport of heavy or large volume products.
Production and packaging lines in demanding industries.
Processes requiring high thermal and mechanical resistance.

The Series 1017 Closed is the perfect choice for processes that demand superior resistance, stability, and efficiency in the transport of heavy and high-demand products.

The available widths and their respective materials can be consulted in the Specification Guide.

(previously Series E17)

Overview

Characteristics	mm	in
Nominal Pitch	17	0,67
Open Area	0%
Rod diameter		0,17
Drive Method	Center
Minimum Width	102	4,02

Specifications

Belt Material	Rod Material	Resistance		Weight		Temperature range		Color
		kgf/m	lb/pé	kg/m²	lb/pé²	°C	°F
Polyacetal	Polyacetal	1400	941	10	2,05	-40 a 90	-40 a 174	Natural / Blue
Polypropylene	Polyacetal	900	605	6	1,23	1 a 100	33,8 a 212	Natural / Blue

Width Table in mm

Before starting the project, it is prudent to perform an additional validation with the commercial team to ensure the technical and commercial viability of the application.

Series 1017 Flat Top PP

101 mm	111 mm	121 mm	132 mm	142 mm	152 mm	161 mm	172 mm	181 mm	191 mm
202 mm	211 mm	221 mm	231 mm	241 mm	251 mm	261 mm	271 mm	281 mm	291 mm
301 mm	310 mm	321 mm	331 mm	341 mm	351 mm	361 mm	371 mm	381 mm	391 mm
402 mm	411 mm	422 mm	432 mm	441 mm	452 mm	462 mm	472 mm	482 mm	492 mm
501 mm	511 mm	522 mm	532 mm	542 mm	552 mm	562 mm	572 mm	583 mm	593 mm
603 mm	613 mm	623 mm	633 mm	642 mm	653 mm	662 mm	673 mm	683 mm	693 mm
703 mm	713 mm	723 mm	734 mm	744 mm	753 mm	763 mm	773 mm	782 mm	794 mm
803 mm

*Para larguras superiores às indicadas na tabela, consulte nosso suporte de atendimento ao cliente

Series 1017 Flat Top Acetal (POM)

101 mm	112 mm	122 mm	132 mm	142 mm	152 mm	162 mm	172 mm	182 mm	192 mm
203 mm	213 mm	223 mm	233 mm	243 mm	253 mm	263 mm	273 mm	283 mm	294 mm
303 mm	314 mm	324 mm	334 mm	344 mm	354 mm	364 mm	374 mm	384 mm	395 mm
405 mm	415 mm	425 mm	435 mm	445 mm	455 mm	465 mm	475 mm	485 mm	495 mm
506 mm	516 mm	526 mm	537 mm	547 mm	558 mm	568 mm	577 mm	587 mm	597 mm
607 mm	617 mm	627 mm	637 mm	648 mm	658 mm	668 mm	678 mm	688 mm	699 mm
709 mm	719 mm	730 mm	740 mm	750 mm	760 mm	770 mm	780 mm	790 mm	800 mm

*For widths exceeding those indicated in the table, please contact our customer support

Width Variation Tolerance +/- 2 mm

Technical Document: Ibraflex Intralogistic Systems
Creation Date: 10/09/2025 – October 9th, 2025
Revision: R-02-PEA-05 PP and Nylon Widths / R-05-PEA-02 Acetal Widths

Accessories

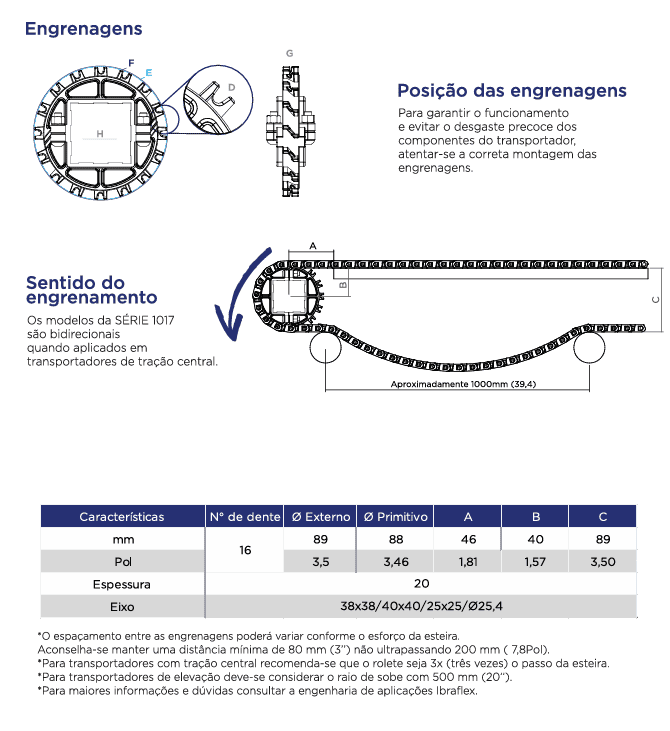

Characteristics	Nº of teeth	Ø Outside	Ø Pitch	A	B	C
mm	16	89	88	46	40	89
In		3,5	3,46	1,81	1,57	3,50
Face Width						20
Bore					38×38/40×40/25×25/Ø25,4
