Modular Conveyor Belt Series 1020 Flat Top

Ibraflex Modular Conveyor Belt 1020 Flat Top: Efficiency and Resistance for Industrial Handling

The Ibraflex Modular Conveyor Belt 1020 Flat Top is engineered to provide high resistance and stability in the transport of products of various dimensions. Featuring a nominal pitch of 15.2 mm and a completely closed area, it is ideal for industrial processes that require a solid and secure surface, such as in the food and beverage industries and intralogistics systems.

Application Examples

Transport of products on production and packaging lines.
Handling of boxes and items of various sizes.
Conveying systems that require a stable and resistant surface.

The available widths and their respective materials can be consulted under the Specification guide.

(Previously Series E20)

General View

Características	mm	Pol
Pitch	15,2	0,60
Open Area	0%
Rod width	Ø4,4	0,16
Drive	Articulation
Minimum Width	148	5,83

Specifications

Belt Material	Rod Material	Resistency		Weight		Temperature		Color
		kgf/m	lb/pé	kg/m²	lb/pé²	°C	°F
Polypropylene	Poliacetal	900	605	5	1,02	1 a 100	33,8 a 212	Blue/Gray
Poliacetal	Poliacetal	1300	874	7	1,43	-40 a 90	-40 a 174	Blue/Gray

Width table mm

Before starting the project, it is prudent to conduct additional validation with the sales team to ensure the technical and commercial viability of the application.

Series 1020 Flat Top PP and Nylon

148 mm	213 mm	277 mm	340 mm	417 mm	481 mm	546 mm	609 mm	673 mm	738 mm
161 mm	226 mm	289 mm	353 mm	430 mm	495 mm	558 mm	622 mm	686 mm	751 mm
173 mm	237 mm	301 mm	365 mm	442 mm	507 mm	570 mm	635 mm	699 mm	764 mm
186 mm	251 mm	315 mm	377 mm	454 mm	520 mm	583 mm	648 mm	712 mm	778 mm
199 mm	263 mm	327 mm	390 mm	468 mm	533 mm	596 mm	660 mm	725 mm	790 mm

- Series 1020 Flat Top Acetal (POM)

148 mm	211 mm	274 mm	338 mm	415 mm	479 mm	542 mm	606 mm	669 mm	734 mm
161 mm	223 mm	287 mm	350 mm	427 mm	492 mm	555 mm	619 mm	682 mm	747 mm
173 mm	237 mm	300 mm	363 mm	439 mm	504 mm	568 mm	631 mm	695 mm	760 mm
186 mm	249 mm	312 mm	377 mm	453 mm	517 mm	580 mm	644 mm	708 mm	772 mm
199 mm	262 mm	325 mm	390 mm	466 mm	529 mm	593 mm	657 mm	721 mm	785 mm

*For widths greater than those indicated in the table, please consult our customer support team.

Widths may vary by +/- 2 mm.

Documento técnico Ibraflex Intralogistic Systems
Data de criação: 09/10/2025
Revisão: R-02-PEA-05 Larguras PP e Nylon | R-05-PEA-02 Larguras Acetal

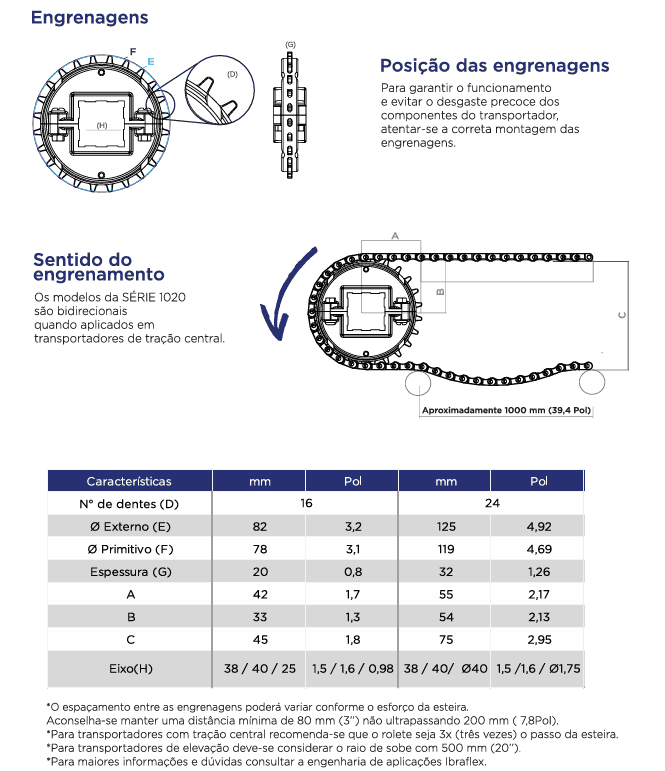

Acessórios

Características	mm	Pol	mm	Pol
N° de dentes (D)	16		24
Ø Externo (E)	82	3,2	125	4,92
Ø Primitivo (F)	78	3,1	119	4,69
Espessura (G)	20	0,8	32	1,26
A	42	1,7	55	2,17
B	33	1,3	54	2,13
C	45	1,8	75	2,95
Eixo(H)	38 / 40 / 25	1,5 / 1,6 / 0,98	38 / 40 / Ø40	1,5 / 1,6 / Ø1,75
