Modular Conveyor Belt Series 1025 Flat Top

Ibraflex Modular Conveyor Belt 1025 Flat Top: Complete Solution for Transporting Products of Various Dimensions

The Ibraflex Modular Conveyor Belt 1025 Flat Top was developed to provide efficiency in the transport of in natura products of different sizes, including food. With a nominal pitch of 25.4 mm, it is ideal for applications on ascending or descending paths, and can be used with or without flights.

In the rubberized version, the conveyor belt offers greater adherence, making it perfect for acceleration and braking systems.

Examples of Application

Conveyor Belts for in natura Products or boxes of various dimensions.
Production lines with ascents or descents.
Handling of food and other sensitive items.

The available widths and their respective materials can be consulted in the Specification Guide.

(Previously series E25)

Overview

Characteristics	mm	in
Nominal Pitch	25,4	1″
Open Area	0%
Rod diameter	Ø4,2	0,16
Drive Method	Center
Minimum Width	99	3,90

Specifications

Belt Material	Rod Material	Resistance		Weight		Temperature range		Color
		kgf/m	lb/pé	kg/m²	lb/pé²	°C	°F
Polyacetal	Polyacetal	1200	806	8,7	1,78	-40 a 90	-40 a 174	Blue / Natural
Polypropylene	Polyacetal	1000	672	5,4	1,11	1 a 100	33,8 a 212	Blue / Natural
Flexible Nylon	Polyacetal	1400	941	7,4	1,52	-20 a 120	-4 a 248	Blue / Gray

Width Table in mm

Before starting the project, it is prudent to perform an additional validation with the commercial team to ensure the technical and commercial viability of the application.

Series 1025 Flat Top PP and Nylon

40 mm	50 mm	60 mm	70 mm	80 mm	90 mm	100 mm	109 mm	119 mm	129 mm
140 mm	149 mm	160 mm	169 mm	180 mm	190 mm	200 mm	209 mm	219 mm	229 mm
239 mm	249 mm	259 mm	270 mm	279 mm	289 mm	299 mm	309 mm	319 mm	330 mm
340 mm	350 mm	360 mm	369 mm	379 mm	389 mm	399 mm	409 mm	419 mm	429 mm
439 mm	449 mm	459 mm	469 mm	479 mm	489 mm	499 mm	509 mm	519 mm	529 mm
539 mm	549 mm	559 mm	569 mm	579 mm	589 mm	599 mm	609 mm	619 mm	629 mm
639 mm	649 mm	659 mm	669 mm	679 mm	680 mm	699 mm	709 mm	719 mm	729 mm
739 mm	749 mm	759 mm	769 mm	779 mm	789 mm	799 mm	809 mm

*For widths exceeding those indicated in the table, please contact our customer support

Series 1025 Flat Top Acetal (POM)

40 mm	50 mm	60 mm	70 mm	80 mm	90 mm	100 mm	109 mm	119 mm	129 mm
139 mm	149 mm	159 mm	169 mm	179 mm	189 mm	199 mm	209 mm	219 mm	229 mm
239 mm	248 mm	258 mm	268 mm	278 mm	288 mm	298 mm	308 mm	318 mm	328 mm
338 mm	348 mm	358 mm	368 mm	378 mm	388 mm	398 mm	408 mm	417 mm	427 mm
437 mm	447 mm	457 mm	467 mm	477 mm	487 mm	497 mm	507 mm	517 mm	527 mm
537 mm	546 mm	556 mm	566 mm	576 mm	586 mm	596 mm	606 mm	616 mm	626 mm
636 mm	646 mm	656 mm	666 mm	676 mm	686 mm	696 mm	706 mm	716 mm	726 mm
736 mm	746 mm	756 mm	766 mm	776 mm	786 mm	795 mm	805 mm

*For widths exceeding those indicated in the table, please contact our customer support

Width Variation Tolerance +/- 2 mm

Technical Document: Ibraflex Intralogistic Systems
Creation Date: 10/09/2025 – October 9th, 2025
Revisão: R-02-PEA-05 PP and Nylon Widths | R-05-PEA-02 Acetal Widths

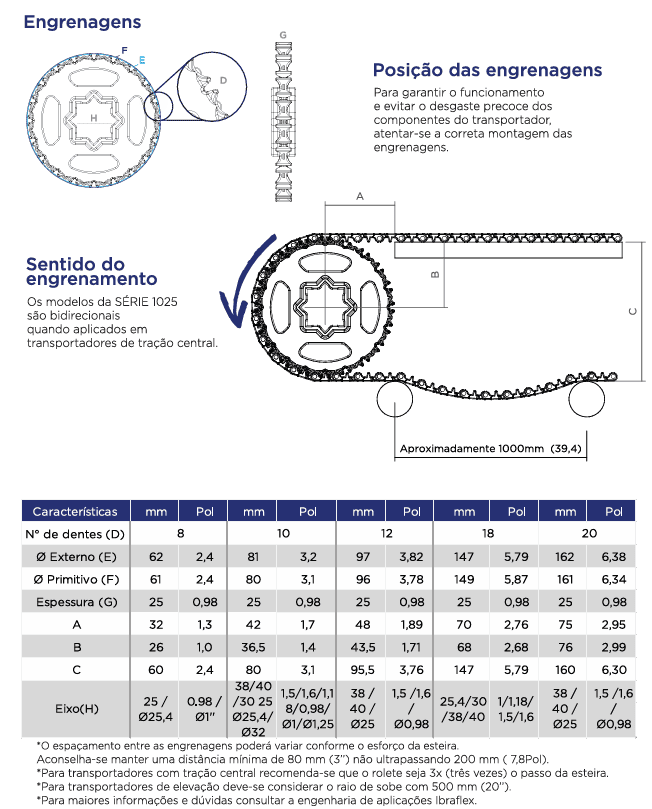

Accessories

Characteristics	mm	in	mm	in	mm	in	mm	in	mm	in
N° of teeth (D)	8		10		12		18		20
Ø Outside (E)	62	2,4	81	3,2	97	3,82	147	5,79	162	6,38
Ø Pitch (F)	61	2,4	80	3,1	96	3,78	149	5,87	161	6,34
Face Width (G)	25	0,98	25	0,98	25	0,98	25	0,98	25	0,98
A	32	1,3	42	1,7	48	1,89	70	2,76	75	2,95
B	26	1,0	36,5	1,4	43,5	1,71	68	2,68	76	2,99
C	60	2,4	80	3,1	95,5	3,76	147	5,79	160	6,30
Bore (H)	[ ] 25 [ ] 30 Ø25,4	0,98 1″	[ ] 38 [ ] 40 [ ] 25 Ø25,4	1,5/1,6 / 0,98 Ø1/Ø1,25	[ ] 38 [ ] 40 Ø25	1,5 / 1,6 / Ø0,98	[ ] 30 [ ] 38 [ ] 40	1/1,18	[ ] 38[ ] 40 Ø25	1,5 / 1,6 Ø0,98

Straight Flight Modules

Characteristics	mm	in
Nominal Pitch	25,4	1″
Maximum Height (H)	75	2,95
Minimum Height (H)	30	1,18
Thickness (A)	4	0,23
Thickness (B)	6,5	0,37
Module Length (C)	298	11,73
Minimum Indent	40	1,2
Available Material	Polypropylene/ Polyacetal

Scoop Flight Modules

Characteristics	mm	in
Nominal Pitch	25,4	1″
Maximum Height (H)	50/75	1,97/2,95
Thickness (A)	4	0,16
Thickness (B)	5	0,20
Module Length (C)	298	11,73
Depth (D)	29,4	1,16
Minimum Indent	40	1,2
Available Material	Polypropylene/ Polyacetal

Flight Modules Specifications

Characteristics	Material	Type	Degrees	Height		Weight
				mm	in	kg/m
Module per 1 meter width	Polyacetal	Straight	0°	73	2,87	0,840
Module per 1 meter width	Polypropylene	Straight	0°	73	2,87	0,531
Module per 1 meter width	Polyacetal	Scoop	90°	50	1,97	0,800
Module per 1 meter width	Polypropylene	Scoop	90°	50	1,97	0,528
Module per 1 meter width	Polyacetal	Scoop	45°	75	2,95	0,802
Module per 1 meter width	Polypropylene	Scoop	45°	75	2,95	0,455

Sidewall

Characteristics	mm	in
Nominal Pitchl	25,4	1″
Height (A)	50 / 70	1,96 / 2,75
Thickness (B)	4,6	0,18

Sidewall Specifications

Characteristics	Material	Height		Weight
		mm	in	kg/m
Unit Weight	Polyacetal	30	1,18	0,008
Unit Weight	Polypropylene	30	1,18	0
Unit Weight	Polyacetal	50	1,97	0,000
Unit Weight	Polypropylene	50	1,97	0,008
Unit Weight	Polyacetal	70	2,76	0,000
Unit Weight	Polypropylene	70	2,76	0
