Modular Conveyor Belt Series 1027 Flush Grid

Straight Modular Conveyor Belt 1027 Flush Grid

Modular Belt 1027 Flush Grid: Complete Solution for Industrial Handling

The Modular Belt Series 1027 Flush Grid was designed to provide efficiency in product transport within industrial environments that require good drainage or do not need a closed surface. With a nominal pitch of 27.2 mm, it is ideal for conveying packaged products and food, boxes, and bulk items, offering safety and high performance in handling processes.

Examples of Application

Belts for general-purpose industrial transport.
Conveying lines for boxes and packaging of various sizes.
Solutions for systems that demand high wear resistance.

The available widths and their respective materials can be consulted in the Specification guide.

(Previously E27 series)

Overview

Characteristics	mm	in
Nominal Pitch	27,2	1,07
Open Area	36%
Rod diameter	Ø4,4	0,16
Drive Method	Center
Minimum Width	128	5,04

Specifications

Belt Material	Rod Material	Resistance		Weight		Temperature range		Color
		kgf/m	lb/pé	kg/m²	lb/pé²	°C	°F
Polypropylene	Polyacetal	1000	672	3,8	0,78	1 a 100	33,8 a 212	Natural/Gray
Polyacetal	Polyacetal	1800	1210	5,4	1,11	-40 a 90	-40 a 174	Blue/Gray

Width Table in mm

Before starting the project, it is prudent to perform an additional validation with the commercial team to ensure the technical and commercial viability of the application.

Series 1027 Flush Grid PP and Nylon

19 mm	128 mm	137 mm	145 mm	154 mm	162 mm	171 mm	179 mm	188 mm	196 mm
205 mm	213 mm	221 mm	230 mm	238 mm	247 mm	255 mm	264 mm	273 mm	281 mm
289 mm	297 mm	307 mm	315 mm	323 mm	332 mm	340 mm	349 mm	357 mm	366 mm
373 mm	383 mm	390 mm	400 mm	408 mm	416 mm	425 mm	434 mm	442 mm	451 mm
459 mm	468 mm	476 mm	485 mm	494 mm	502 mm	510 mm	519 mm	527 mm	536 mm
544 mm	553 mm	562 mm	570 mm	579 mm	587 mm	595 mm	604 mm	612 mm	620 mm
629 mm	638 mm	646 mm	655 mm	663 mm	672 mm	680 mm	690 mm	698 mm	707 mm
715 mm	723 mm	732 mm	740 mm	749 mm	757 mm	765 mm	775 mm	782 mm	791 mm
800 mm

Series 1027 Flush Acetal (POM)

19 mm	128 mm	137 mm	145 mm	154 mm	162 mm	171 mm	179 mm	188 mm	196 mm
205 mm	213 mm	221 mm	230 mm	238 mm	247 mm	256 mm	264 mm	273 mm	281 mm
289 mm	299 mm	307 mm	315 mm	323 mm	332 mm	340 mm	349 mm	357 mm	366 mm
375 mm	383 mm	392 mm	400 mm	408 mm	416 mm	425 mm	434 mm	442 mm	451 mm
459 mm	468 mm	477 mm	485 mm	494 mm	502 mm	510 mm	519 mm	527 mm	535 mm
544 mm	553 mm	561 mm	570 mm	579 mm	587 mm	595 mm	604 mm	613 mm	621 mm
630 mm	638 mm	647 mm	655 mm	664 mm	672 mm	681 mm	690 mm	699 mm	707 mm
715 mm	723 mm	732 mm	740 mm	749 mm	757 mm	765 mm	775 mm	791 mm	800 mm

*For widths exceeding those indicated in the table, please contact our customer support

Width Variation Tolerance +/- 2 mm

Technical Document: Ibraflex Intralogistic Systems
Creation Date: 10/09/2025 – October 9th, 2025
Revision: R-02-PEA-05 PP and Nylon Widths | R-05-PEA-02 Acetal Widths

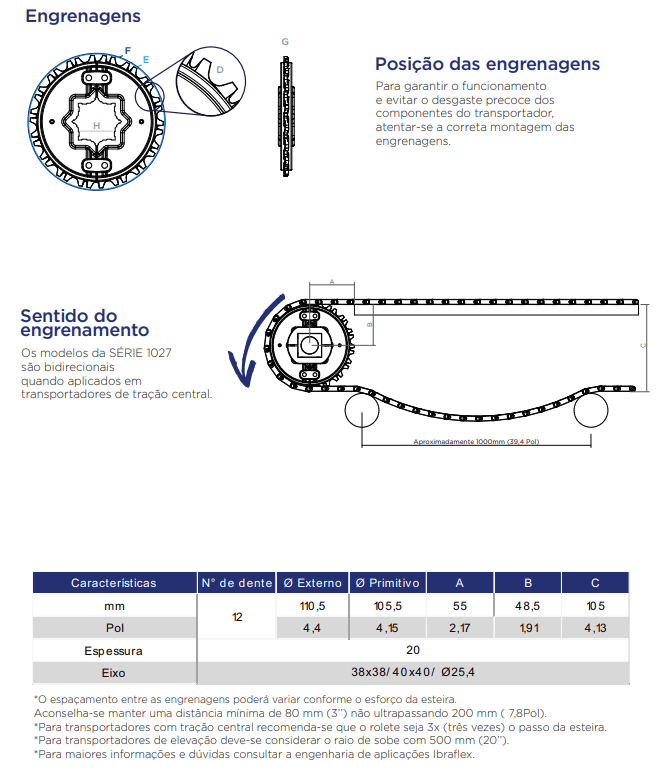

Characteristics	N° of teeth	Ø Outside	Ø Pitch	A	B	C
mm	12	110,5	105,5	55	48,5	105
in		4,4	4,15	2,17	1,91	4,13
Face Width		20
Bore		38×38/40×40/ Ø25,4
